AIR-MOTION
6KG COFFEE ROASTER
Watch the Intro Below
AIR-MOTION

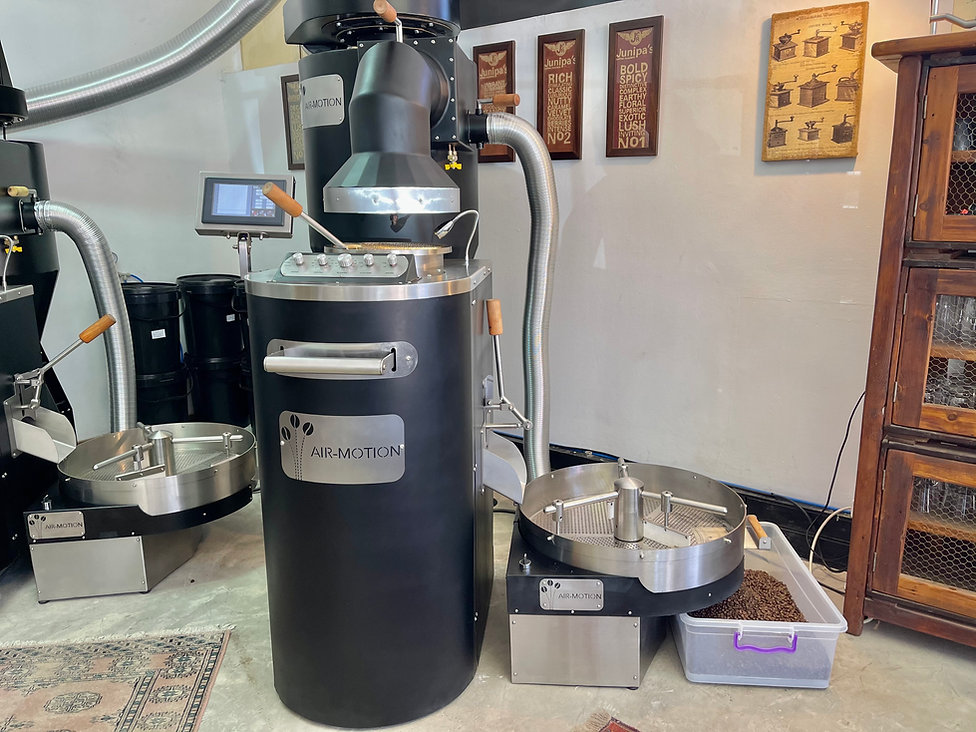

Introducing the Air-Motion 6kg Coffee Roaster.
Making it accessible to anyone through cutting edge technology, ease of use, yet sophisticated in its delivery of quality.
Do you own your own coffee roastery, a coffee shop, a restaurant or you are simply passionate about coffee and want to start roasting your own coffee beans?
Then this machine is for you.

18Kw
Immediate Response Electrical Element Bank
Removes Dust, Smoke & Chaff
With Clear View
Touchscreen Interface
Fan Cooled
Immediately Stops the Roast Once Target Temperature is Reached
& Chaff Collector
& Fan
Extraction
Ducting
Blowers
Providing Clean Fresh Air Into Roast Chamber
Supporting Vision
Tracking
Roast Profiles with Real-Time Feedback
Place cursor on picture above to view its features
WHAT PEOPLE SAY
"Convection roasting taken to the next level with much thought.
I have roasted on it and indeed it is a work of art.
Seamless and intuitive software enables roasters to work with ease and achieve their desired roast in a matter of minutes."
Nicodemus / Sevenoaks Trading
AIR-MOTION COMPONENTS
Touch Screen Interface
Touchscreen interface panel
Tracking the roast profile with real-time feedback and graphs


The Roast Chamber
The Air-Motion 6 Roast Chamber has a 6kg roast capacity, driven by an 18kw immediate heat response electrical element bank
The Work Station
Control dials, a work light, bean retainer handle and a mesh dust extraction and bean cooling lid


The Cyclone
The cyclone removes dust, chaff and smoke from the roast chamber, it also provides a water dousing system to immediately stop the roast when target temperatures are reached
The Cooling Tray
After roasting, the coffee beans are dropped into a cooling tray, to bring the coffee beans to ambient temperature


The Cyclone & Extraction Fan
Removes dust, chaff, smoke and hot air from the roast chamber. It separates these components, depositing the chaff into the chaff collector, dilutes the smoke and hot air with clean fresh air, and extracts this treated air out of the extraction ducting, eliminating the need for an after burner
AIR-MOTION
Get In Touch
DRILL DOWN INTO DETAILS

GENERAL DETAILS
The Air-Motion 6 Artisan Coffee Roaster, an Electronically Heated Free Air Coffee Roasting Machine with 6kg nominal capacity, consists of 3 (three) major parts, namely;
-
The Roast Chamber
-
The Cyclone Extraction System
-
Touch Screen Interface
1. ROAST CHAMBER
The roast chamber consists of a cone shaped stainless steel tube with a perforated base, into which the ‘green’ coffee beans are manually loaded.
Hot air enters at the base, lifting or spouting the beans centrally. As the air dissipates, the beans fall around the periphery and recycle down the roast chamber to the hot air lifting point.
This ensures uniform roasting of the beans, which is controlled by the temperature controller and sensing probes (thermocouples), which is built into the roast chamber.
2. CYCLONE EXTRACTION SYSTEM
Initial ‘Dust’ coming off the beans, together with ‘Smokey’ air and ‘Chaff’ given off during the roasting process is immediately collected and diluted with excess air from the surrounding area and passed via ducting to the ‘Cyclone’ unit.
The solids are separated from the air in this unit and collected in a removable drum, which can be periodically emptied as required.
The ‘treated’ air is then discharged to the atmosphere by the cyclone fan.
When the beans have reached their roasted condition ie. the pre-set
temperature and roast profile wanted, the heater is automatically switched off and water is sprayed in a fine mist into the roast chamber immediately reducing heat to the beans and preventing continuous ‘Exothermic’ reaction from taking place.
After being allowed to cool the beans are further deposited into a cooling tray, through an exit chute to reach ambient temperature.
3. Touch Screen Interface
The Touch Screen Interface is a human interface touchscreen panel, logging 5 graphs in real-time, including element and bean temperature, bean Rate-of-Rise, blower speed and element control as well as recording 1st Crack, development time and percentage of roast time, and the total time of the roast.
Side View
%20-%20Copy.jpg)
1650mm
1650mm
Top View
.jpg)
1500mm
WHAT YOU NEED
-
A 380 Volt x 3 phase supply cable, plus neutral of 40 amps per phase capacity.
-
Water point with shut off valve to provide water supply with 20mm connection point.
-
An extraction ducting must be fitted from cyclone fan to atmosphere.
-
No gas installation required.
